PL-CNC Lamp

pl-cnc-lamp

Machine Lights for all types of CNC machines
Models: PL-CNC-9/ PL-CNC-11 / PL-CNC-18/PL-CNC – 22
Tube Light: PL-9W PL-11W PL-9W x 2 PL-11 W x 2
: Osrarm make (White/Yellow) with expected life of 8000Hrs.
Length: 325mm, 360mm, 485mm, 585mm
Ballast: Philips / b,a,g. make Electro-magnetic ballast 230 AC
Power Consumption: 11W / 13W / 20W / 24W
Glass Tube: Borosilicate glass tube Ø-M60 x 3.2 mm thickness
Protection: IP 67
Cable: 3 Core cable x 2 Meters
Mounting: Nylon 6 moulded rotating side mounting brackets

LED-CNC Lamp

led-cnc-lamp

Machine lamps for all types of CNC machines LED CNC Machine Light
Models: 8 LED CNC/ 4 LED x 2 / 12 LED CNC 6 LED X 2
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Length: 360mm, 485mm
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 10W / 15W
Lamp Enclosure: Borosilicate glass tube Ø-M70 x 3.2 mm thickness
Protection: IP 67
Cable: 3 Core cable x 2 Meters
Mounting:: Nylon 6 moulded rotating side mounting brackets

PL-CNC Lamp

pl-cnc-lamps

Machine lamps for all types of CNC machines
Models: PL-CNC-18A / PL-CNC-26 / PL-CNC-36/PL-CNC – 55
Tube Light: PL-18W PL-26W PL-36W PL-55 W
: Osrarn make (White/Yellow) with expected life of 8000Hrs.
Length: 360mm, 360mm, 550mm, 760mm
Ballast: Philips / b,a,g. make Electro-magnetic ballast 230 AC
Power Consumption: 20W / 28W / 40W / 55W
Glass Tube: Borosilicate glass tube Ø-M70 x 3.2 mm thickness
Protection: IP 67
Cable: 3 Core cable x 2 Meters
Mounting: Nylon 6 moulded rotating side mounting brackets

LED-CNC Lamp

led-cnc-liamp

Machine lamps for all types of CNC machines
Models: 8 LED CNC/ 4 LED x 2 / 12 LED CNC 6 LED X 2
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Length: 360mm, 485mm
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 10W / 15W
Lamp Enclosure: Borosilicate glass tube Ø-M70 x 3.2 mm thickness
Protection: IP 67
Cable: 3 Core cable x 2 Meters
Mounting:: Nylon 6 moulded rotating side mounting brackets

PL-ARM LIGHT

pl-arm-light

For better illumination on all types of conventional machines
Models: ML915/ML1115/ML1815
9W=60W Bulb11W=75WBulb18W=100WBulb
Tube Light: Osram make 9W/11W/18W PL (White/Yellow) with expected life of 8000Hrs.
Ballast: Philips / b,a,g. make Electro-magnetic ballast 230 AC
Power Consumption: 11W/13W/20W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated, 15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

LED-ARM LIGHT

pl-arm-led-light

For better illumination on all types of conventional mahcines
Models: 4 LED ARM LIGHT / 8 LED ARM LIGHT
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 6W / 10W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated, 15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

PL-ML PRESS

pl-ml-press

For Better Illumination on all types of Mechanical Press
Models: 4 LED ARM LIGHT / 8 LED ARM LIGHT
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 6W / 10W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated, 15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

LED-ML PRESS

led-ml-press

For Better Illumination on all types of Mechanical Press
Operating Voltage: 12V/24V/110V/230V
Lamp: 12V-20W Halogen Lamp
Lamp Enclosure :: Nylon-6 moulded enclosure for bulb mounting
Stand: 24″ Flexible metallic pipe with PVC cover
Protection: 5mm Glass for protecting bulb
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

Industrial Spot Lights

Spot Light

spot-light

For Edm / Wire Cut Machines
For better illumination on all types of conventional machines
Models: 4 LED ARM LIGHT / 8 LED ARM LIGHT
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 6W / 10W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated,
15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

LED-ARM SPOT LIGHT

led-arm-spot-light

For better illumination on all types of conventional machinesLED Industrial Spotlights
Models: 4 LED ARM LIGHT / 8 LED ARM LIGHT
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 6W / 10W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated,
15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

LED-SPOT LIGHT

led-spot-light

For better illumination on all types of conventional machines
Models: 4 LED ARM LIGHT / 8 LED ARM LIGHT
Power LED: Osram – Germany – LUW W5AM /1 W LED / Expected life 40000 hr.
Driver: b.a.g. Germany 230 AC
: Sparktron – 24V Ac/OC – 110V AC
Power Consumption: 6W / 10W
Lamp Enclosure: Powder coated enclosure
Stand: Sturdy, vibration and shock resistant powder coated,
15″ Aluminum pipe stand
Protection: Splash resistant – 2mm Acrylic cover with Nitrile rubber gasket
Cable: 3 Core cable x 2 Meters
Mounting: Horizontal/vertical mounting with switch

LED-TIER LAMP

Tower Light

Tier Lamp
LED Based stage indication lampsThree Tier Lamp
Types: Modular 1 to 5 stage tiers
Opreting Voltage: 24V DC /110V AC / 230V AC
LEDs: High intensity colour LEDs
Colour: Red / Amber / Green / Blue / White
Optional: Flasher / Buzzer
Lamp Diameter: 45mm
Stand: 5″- long SS pipe with plastic moulded base tor easy mounting

PL-PANEL LAMP

pl-panel-lamp

Panel Lamp

For glare-free close visual inspection Control Panel Lamp with Switch
Lamp Enclosure: Plastic moulded enclosure
Power LED: Osram – PL -11 W
Ballast: Philips / b.a.g, make Electro-magnetic ballast-230 AC
Mounting: 330mm x 5Omm x 1.2mm thick powder coated mounting plate

Led-Panel Lamp

led-panel-lamp

For glare-free close visual inspection
Lamp Enclosure: Plastic moulded enclosure
Power LED: Osram – Germany – LUW WSAM /1 W LED / Expected life
40000 hr.
Ballast: b.a.g, make Electro-magnetic ballast-230 AC
:Sparktron – 24V Ac/DC-110V AC
Mounting: 330mm x 5Omm x 1.2mm thick powder coated mounting plate

Hand Lamp

hand-lamp

For maintenance purpose
Type: CFL 15W-230V
Enclosure :: Powder coated enclosure with 2mm thick acrylic cover
Cable: 5 meter shielded cable
Mounting: Hook / magnets mounted on the back

Revolving Lights & BuzzersRevolving Light, Bus Bar Indication, Aviation Light, Hooters.

Revolving Lights & Buzzers Revolving Lights & Buzzers Revolving Lights & Buzzers

Industrial LED Lights

Cold Storage Lamp

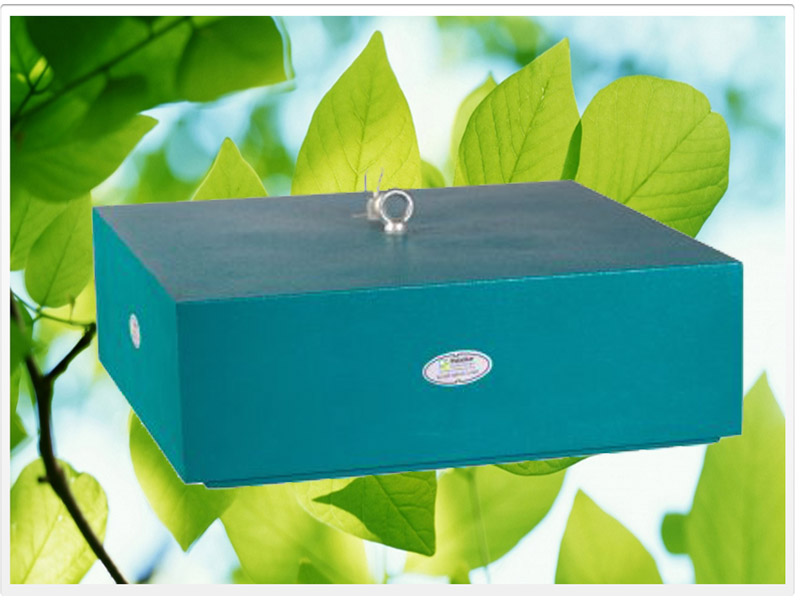

Led-Highbay Light

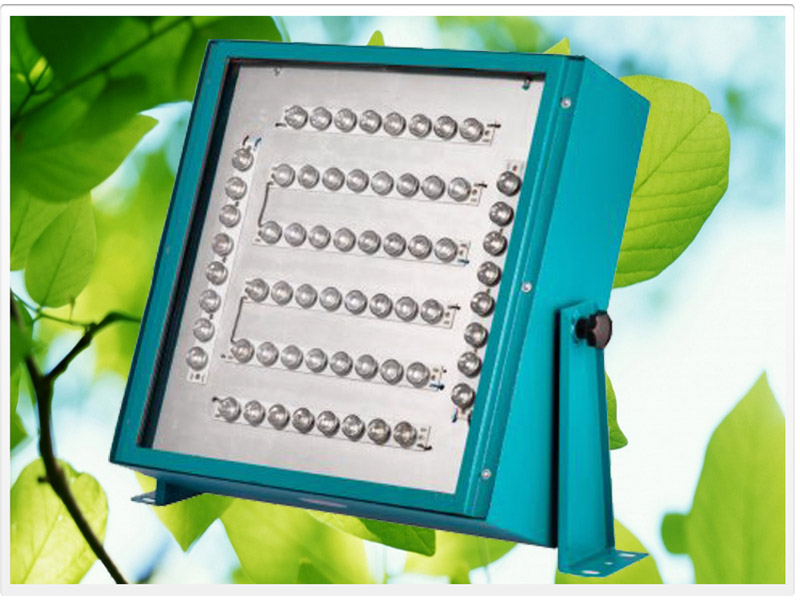

Led-Highbay Light

Led-Highbay Light

Led-Cold Storage Lamp

LED Lights

Industrial LED Lights

Industrial LED Lights

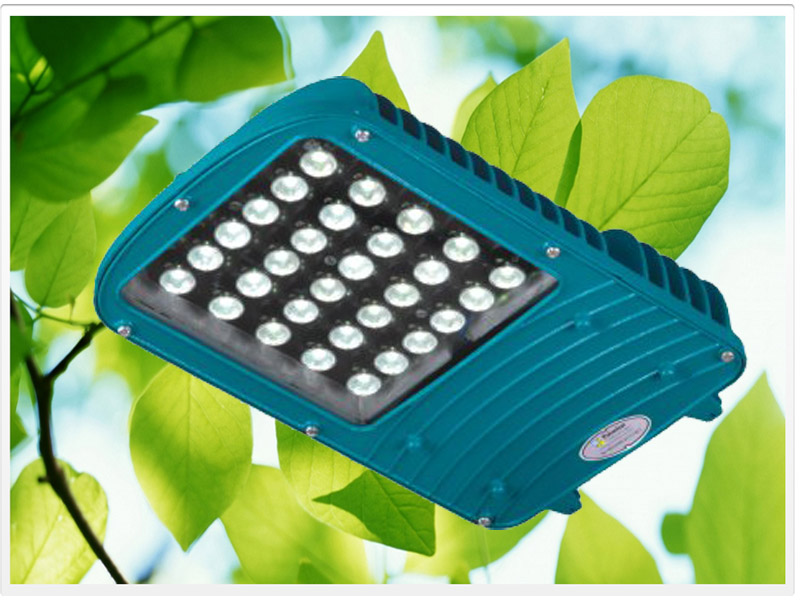

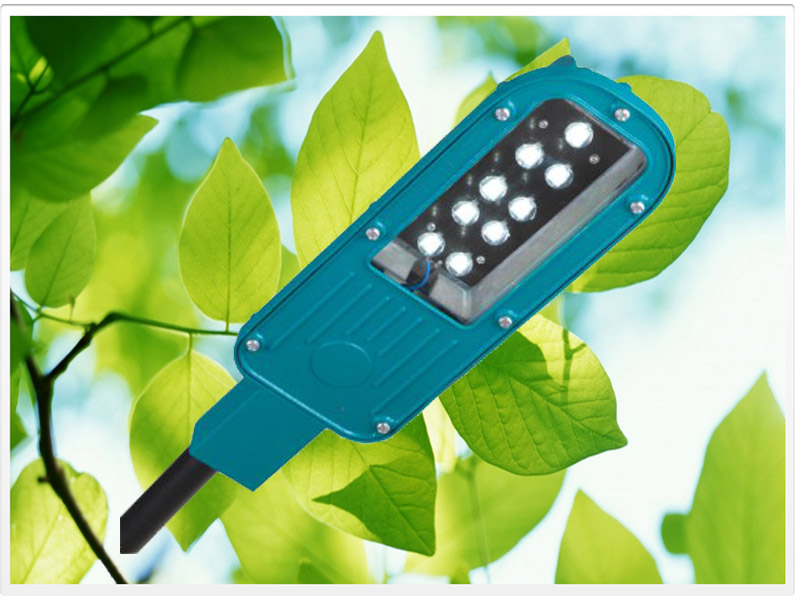

Led-Street Light

Led-Street Light

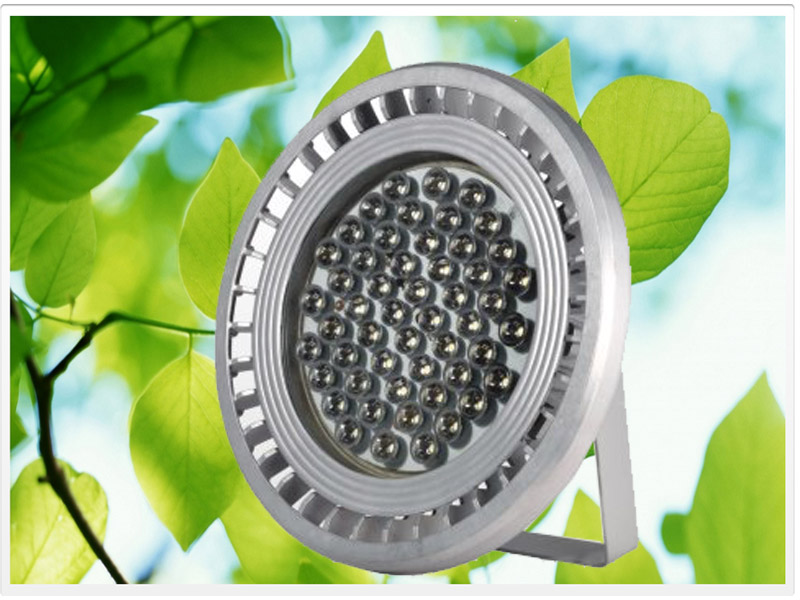

Led-Flood Light

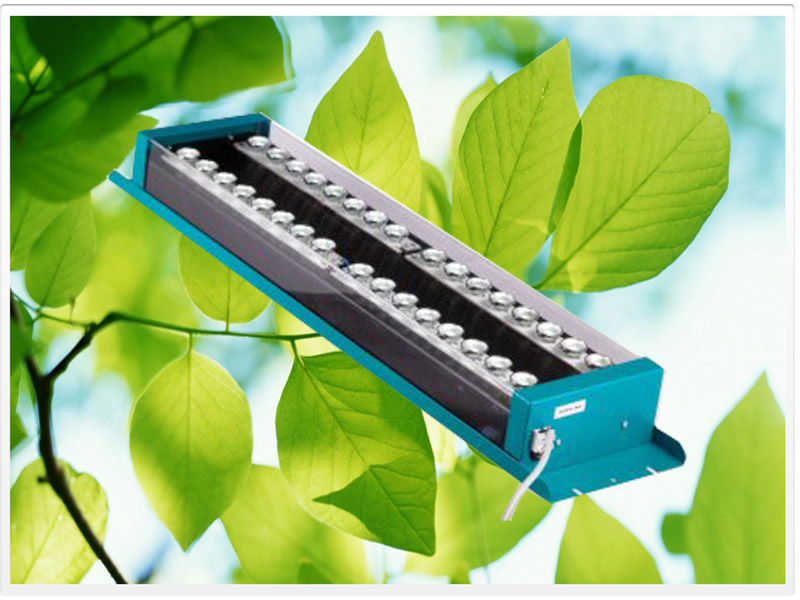

Work Bench Light

Led-Street Light

Led-Street Light

Led-Flood Light

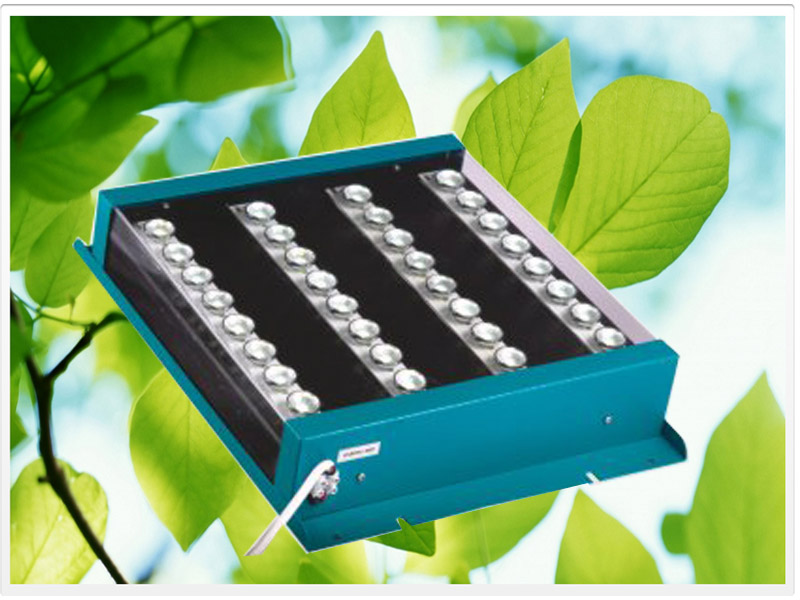

led indoor light

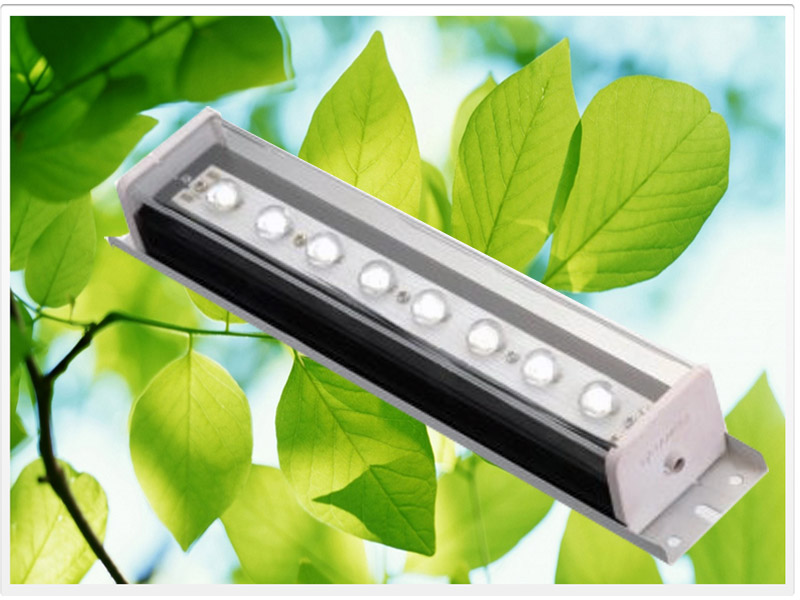

Indoor Lighting

Indoor Lighting

Work Bench Light

Work Bench Light

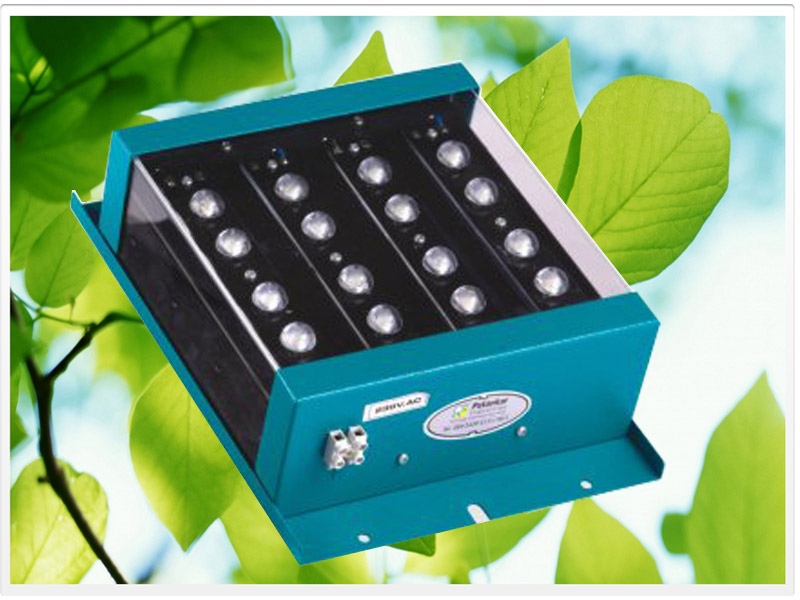

led indoor light
